B-RAD SELECT battery series
Torque range: 50 – 7.000 Nm

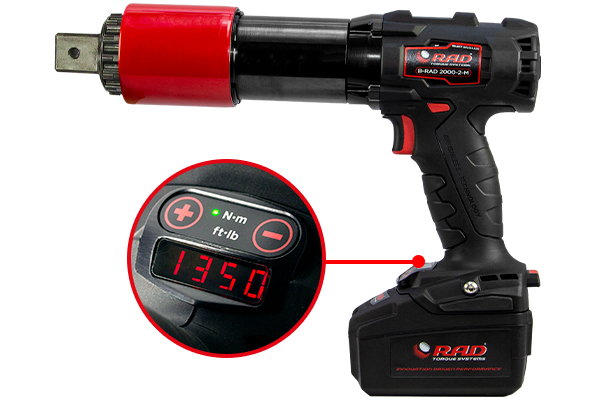

The new B-RAD SELECT battery series torque wrenches comes with two simple buttons to increase or decrease the value by 10 Nm.
At the four-digit display the set torque value is displayed. The B-RAD SELECT remembers the last set torque value even after the battery has been removed.
The B-RAD is especially suitable for jobs where electricity or compressed air are not available.
The number of cycles per battery is depending on stud length, lubrication, temperature and torque setting.
- Brushless motor
- Available in single and automatic 2-speed gearbox
- Low battery warning to prevent torque output reduction
- Controlled bolting – repeatability of +/- 3%
- Extremely low noise level – only 65 dB
- Automatic reaction arm release
- Possibility to set torque in 1-50 levels instead of torque settings
- Lithium-ion 18V / 5.2 Ah and 8.0 Ah battery technology
- Optional:

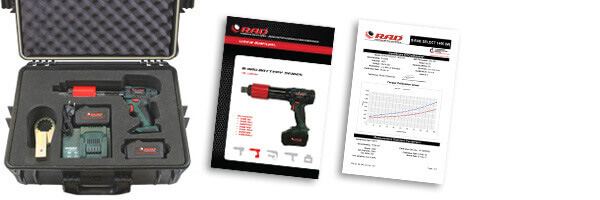

B-RAD SELECT tools include:
- Reaction arm and retaining ring
- 2 Lithium-ion 18V/5.2 Ah batteries with charger (For the B-RAD SELECT 4000 & 7000: 1x 5.2 Ah and 1x 8.0 Ah)
- Weatherproof storage case
- User manual
- Calibration certificate
| Product range |  |
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"} | {"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant- antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"} | {"lang-en": "Torque range", "lang-nl": "Momentbereik", "lang-de": "Drehmoment- bereich", "lang-it": "Range di coppia", "lang-es": "Rango de par", "lang-fr": "Plage de couple", "lang-da": "Momentområde", "lang-tr": "Tork araligi"} | {"lang-en": "RPM", "lang-nl": "TPM", "lang-de": "Drehzahl", "lang-it": "GIRI/MIN", "lang-es": "RPM", "lang-fr": "t/min", "lang-da": "O/M", "lang-tr": "Devir/Dak"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"} | {"lang-en": "Dim. A", "lang-nl": "Afm. A", "lang-de": "Maße A", "lang-it": "Dim. A", "lang-es": "Dim. A", "lang-fr": "Dim. A", "lang-da": "Dim. A", "lang-tr": "Boyut A"} | {"lang-en": "Dim. B", "lang-nl": "Afm. B", "lang-de": "Maße B", "lang-it": "Dim. B", "lang-es": "Dim. B", "lang-fr": "Dim. B", "lang-da": "Dim. B", "lang-tr": "Boyut B"} | {"lang-en": "Dim. C", "lang-nl": "Afm. C", "lang-de": "Maße C", "lang-it": "Dim. C", "lang-es": "Dim. C", "lang-fr": "Dim. C", "lang-da": "Dim. C", "lang-tr": "Boyut C"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"} |
|---|---|---|---|---|---|---|---|---|---|
| 🠋 30213 | B-RAD SELECT 275 | ½" or ¾" | 50 - 270 Nm | 47 | 3,2 Kg | 228 mm | 63 mm | 68 mm | 262 mm |
| 🠋 28264 | B-RAD SELECT 700 | ¾" | 170 - 700 Nm | 21 | 3,5 Kg | 231 mm | 63 mm | 67 mm | 262 mm |
| 🠋 28266 | B-RAD SELECT 1400 | ¾" | 300 - 1.400 Nm | 10 | 3,5 Kg | 231 mm | 63 mm | 67 mm | 262 mm |
| 🠋 28267 | B-RAD SELECT 1400-2 | ¾" | 300 - 1.400 Nm | 71 | 4,3 Kg | 279 mm | 63 mm | 67 mm | 262 mm |
| 🠋 28268 | B-RAD SELECT 2000 | 1" | 400 - 2.000 Nm | 6 | 4,0 Kg | 244 mm | 69 mm | 69 mm | 262 mm |
| 🠋 28269 | B-RAD SELECT 2000-2 | 1" | 400 - 2.000 Nm | 19 | 4,9 Kg | 298 mm | 69 mm | 69 mm | 262 mm |
| 🠋 28270 | B-RAD SELECT 4000 | 1" | 800 - 4.000 Nm | 3 | 6,0 Kg | 285 mm | 81 mm | 81 mm | 266 mm |
| 🠋 28271 | B-RAD SELECT 4000-2 | 1" | 800 - 4.000 Nm | 19 | 6,7 Kg | 337 mm | 81 mm | 81 mm | 266 mm |
| 🠋 28272 | B-RAD SELECT 7000 | 1,5" | 1.400 - 7.000 Nm | 2 | 8,8 Kg | 295 mm | 95 mm | 95 mm | 272 mm |
Optional 8.0 Ah LiHD high-performance battery pack
The combination of new high-performance battery cells and completely newly developed electronic components in the pack ensure that maximum power remains available for a longer time. So you can now tighten even more bolts compared to the already impressive performing 5.2 Ah batteries.
Unfortunately, because of the increased power output, it is not possible to airfreight the 8.0 Ah battery due to IATA restrictions. These restrictions do not apply to sea and overland transport. Therefore RAD’s battery powered torque wrenches will not be equipped as standard with the LiHD 8.0 Ah battery pack but with the current 5.2 Ah battery pack.
Part number 8.0 Ah LiHD battery pack: 200473
Optional: Double Safety Button
Part number: 25949
All B-RAD SELECT torque wrenches can optionally be equipped with a “Double safety button”. This optional safety system consists of an extra button on the topside of the tool which need to be pressed simultaneously with the trigger in order to start operation of the tool.
This system dramatically reduces the pinching risk with the reaction arm as it forces the operator to have two hands on the tool handle at all time.
